Inventory Label Maintenance

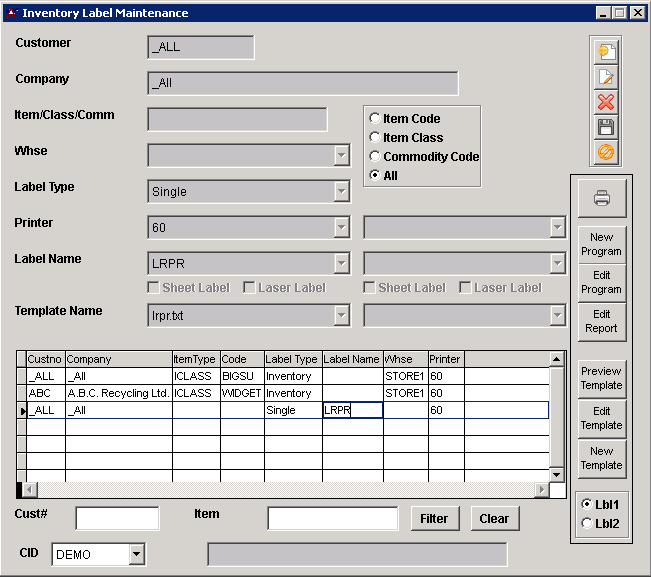

Inventory Label Maintenance Screen¶

Click for full size

Edit Template¶

• O is the Label Origin (0,0) Upper Left Corner as they come out of the printer


• LS,X,Y = Label Size X and Y are size in Inches


• RO,X = Rotate R = Rotate so label prints parallel to label roll, N = Normal Label prints across roll


• BX,X,Y,H,W,L = Box X,Y are start point in Inches, H,W are Height and Width in Inches, L is line size in dots


• TX,X,Y,F,D,R = Text X,Y are start point in Inches, F is Font size, D is String to Print, R = Reverse Print (Must draw solid box first)


• DA,X,Y,F,D1,D2,D3,D4,D5 = Text X,Y are start point in Inches, F is Font size, D1-5 is Data or strings, they are combined together


• Size
  • LS,4,2
• Rotate
  • RO,N
• Draw box
  • BX,.2,.2,3.5,1.10,3
• Desc line
  • DA,.3,.3,35,"LEFT(ZITEMMASTER.DESCRIP,45)"
  • DA,.3,.6,35,"SUBSTR(ZITEMMASTER.DESCRIP,46,45)"
• Line under desc
  • BX,.2,.8,3.5,.01,3
• Line under serial
  • BX,.2,1.3,3.5,.01,3
• Barcode
  • BC,.1,1.4,128,N,,"alltrim(zitemmaster.item)"

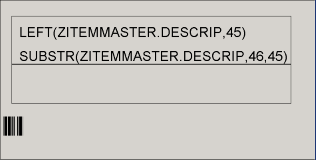

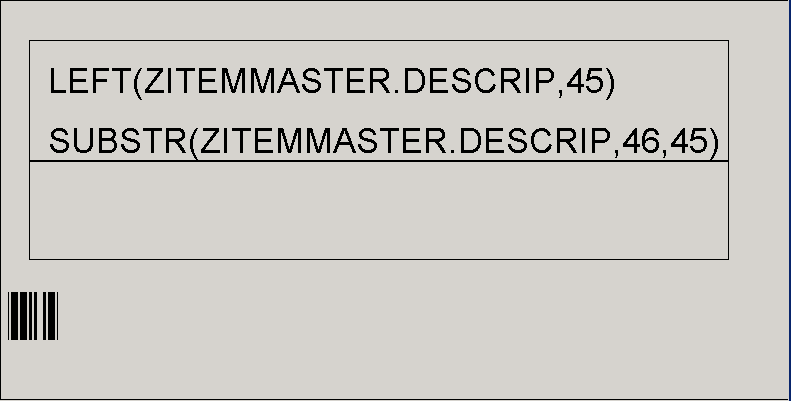

Barcode Example - Click for full size
