General Description
Default Menu Location: Maintain >> Routing >> Route Maintenance
Screen Name: ROUTEMAINT
Function The Route Maintenance screen is used to add and maintain routes of standard tasks.
The grid on the left shows the current status of the route.

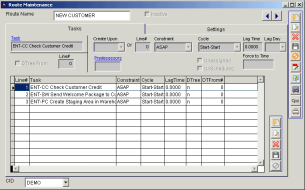

 Route Maintenance - Tasks Tab |
Route Creation

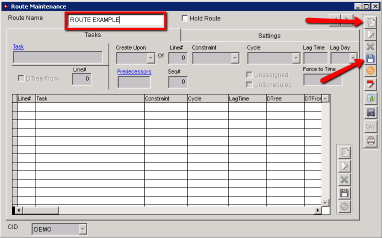

Select the add button at the top right. Type in the name of the route you want to make in the top field. Once the name is correct, click the save button.

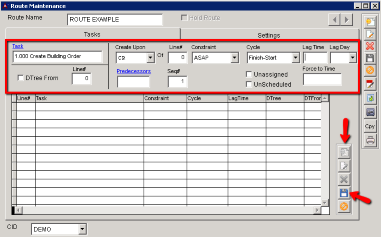

Once the route is saved, use the add/edit/delete/save/cancel buttons on the lower part of the screen rather than the upper part. Select add and enter the task that will come first in the route. Select the other options for that task and hit save. The first task must always have a Seq# of
1.

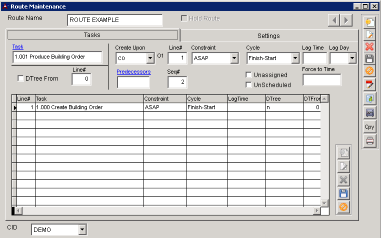

Add as many tasks as necessary in the order they should occur.

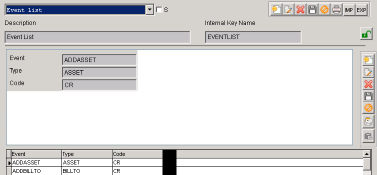

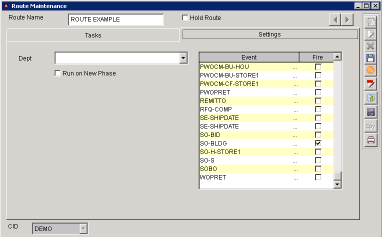

The settings tab of the Route Maintenance screen will control what event in the system starts the route. Routes can be manually started from different areas of Adjutant, but for an event to start a route, it must be selected on this screen. The events that show up in the list to choose from are generated from the Event List rule.
Fields
Route Name: The name of the route.
Task: The standard task you are entering or editing in the route.
Predecessors: The predecessor(s) for the standard task you have selected.
Create Upon x of Line #:
Select the event and task to create this task on.
CR-Create: Will start the task being entered at the creation of the Line# entered
AS-
Assign: Will start the task being entered when the Line# entered is Assigned to a
ResourceCO-Complete: Will start the task being entered upon the completion of the Line# entered
ST-
Start: Will start the task being entered once the Line# entered is
"Punch-in"/ or Started
Select the constraint.
ASAP will be scheduled soon as possible
ALAP will be scheduled as late as possible
Fixed will be scheduled at a fixed time and not moved.
Cycle: Select the cycle, to fire task from Line # Selected.
Start-Start: Schedules the start of the task being entered to fire at the same time as the Line# entered
Start-Finish: Schedules the start of the task being entered to fire once the Line# entered is completed
Lag Time: Select the lag time according to your cycle in days (d), weeks (w), months (m). For example, 1 day would be typed as 1d.
This field must not be left blank
DTree Form: This box needs to be checked when a decision tree is being added to the route. The decision tree line will always be the end of the route.
Line# (next to DTree Form) - This will pull the decision tree form from the task on the line specified here.
The first step of the route MUST have a seq# of 1
