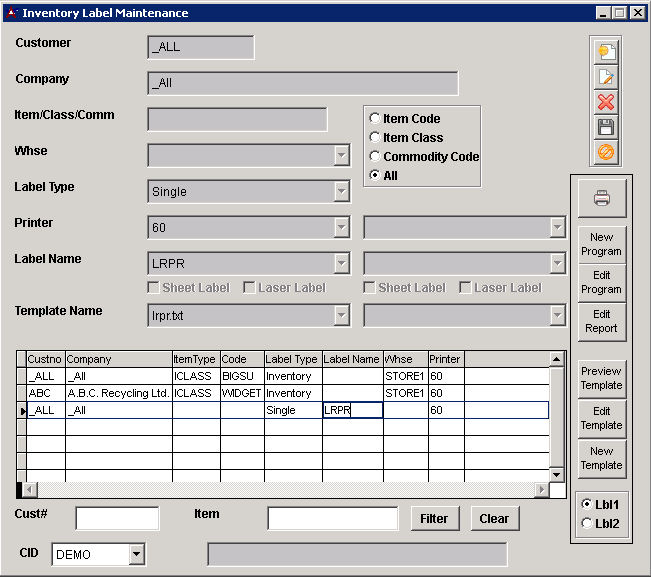

Inventory Label Maintenance Screen¶

Click for full size

Edit Template¶

• O is the Label Origin (0,0) Upper Left Corner as they come out of the prnter


• LS,X,Y = Label Size X and Y are size in Inches


• RO,X = Rotate R = Rotate so label prints parellel to label roll, N = Normal Label prints across roll


• BX,X,Y,H,W,L = Box X,Y are start point in Inches, H,W are Height and Width in Inches, L is line size in dots


• TX,X,Y,F,D,R = Text X,Y are start point in Inches, F is Font size, D is String to Print, R = Reverse Print (Must draw solid box first)


• DA,X,Y,F,D1,D2,D3,D4,D5 = Text X,Y are start point in Inches, F is Font size, D1-5 is Data or strings, they are combined together


Example:
