General Information¶

Default Menu Location Transaction >> Address Book >> Record Finder

Search¶

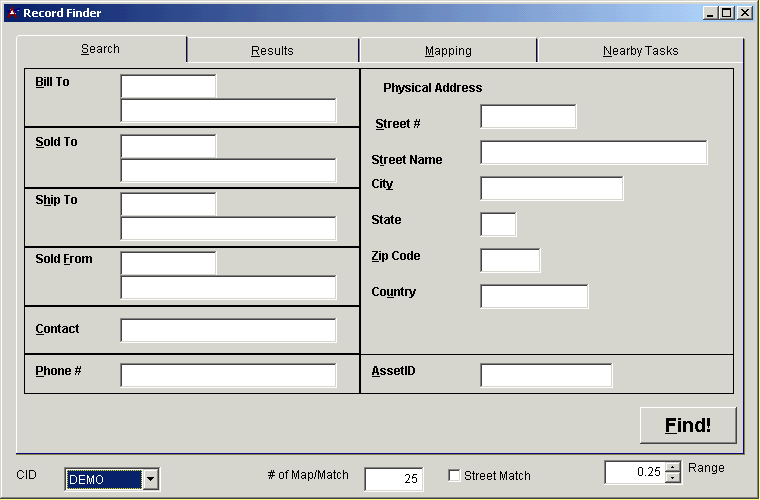

Record Finder - Search

The Search screen is used to find organizations and view nearby tasks.

• Enter any of the known information into the corresponding field and click on Find button


• This will automatically switch you over to the Results tab and display the matching search results


Results¶

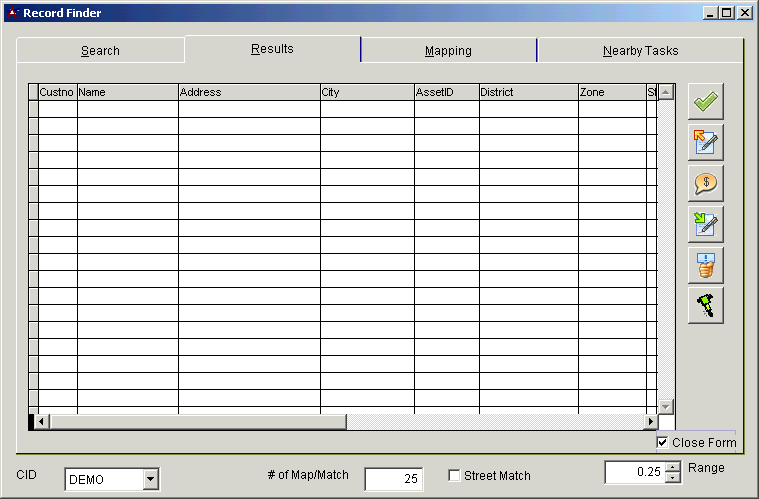

Record Finder - Results

• To schedule a new task for the selected organization, click the New Task icon on the right side of the screen. You may also double-click the organization in the results grid; this will display the Task Entry Screen.


• To create a new Sales Order for the organization selected, click the Sales Order button


• To create a new Customer Quote for the organization selected, click the Customer Inquiry button


• To create a new Purchase Order for the organization selected, click the PO button


• To create a new Vendor Inquiry for the organization selected, click the Vendor Inquiry button


• Place a check in the Close Form box to automatically close this window when opening a new form


• To see a graphical map of all active tasks for the selected organization, click the Mapping tab


• To see a text list of all active tasks for the selected organization, click the Nearby Tasks tab


Mapping¶

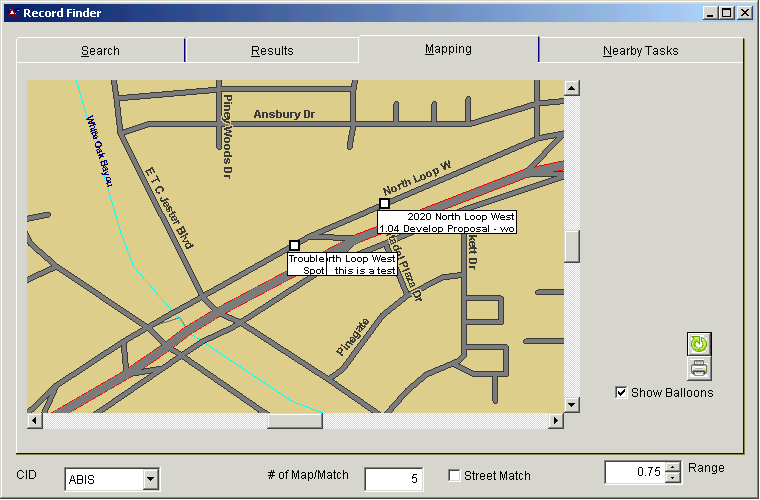

Record Finder - Mapping

• Mapping tab is used to graphically map all of the open tasks/work orders, within a given range for the selected organization.


• The Range field at the bottom right-hand side of the screen is used to change the display area shown on the map; the units are in square miles.


• To change the area shown on the map, click the Refresh button


• To print the map, click the Print button


Nearby Tasks¶

Record Finder - Nearby Tasks

• Nearby Tasks tab is used to textually show all of the open tasks, within a given range, for the selected organization. This screen works in the same way as the Mapping Tab, but shows the information in a spreadsheet format, rather than a visual map.


• To open a task, select the task you wish to view and click the Display Task button. You may also open the task by double-clicking it. This will take you to the Task Entry Screen.


• To see incomplete tasks, click the Active radio button


• To see completed tasks, click the Complete radio button


• To print the list, click Print
