General Description
Default Menu Location Transaction >> Item Control >> Coil Finder
Screen Name FINDCOIL
FunctionThe Coil Finder allows you to search current and past coil inventory using all data fields related to a coil.
Filters Tab
The
Filters Tab provides multiple fields to search by to find coils location and status
- The scroll box on the bottom left allows the user to narrow which warehouses to search in
- When relevant fields are filled in press the Find button and it will jump to the Results tab with the matching coil lines
 Coil Finder- Filter Tab |
Filters/Fields
The following is a list of fields used to locate inventories:
Coil #: Coil number
Item: Item Code
Description: Item Description
PO#: Purchase Order number
Mill Coil#: Mill coil number
Mill Name: The name of mill
Processor Name: The name of processor
Proc Coil#: The processor's coil number
Heat#: The coil's heat number
Orig Coil#: Original coil number (if coil was processed)
Show On Hand = 0 Displays coils with a current on hand quantity of zero
Show On Hand < 0 Displays coils with a current on hand quantity less than zero
On-Hand: On hand quantity only
WIP: Work In Progress only
Shipped: Shipped coils only
All: Include all of the above
Results
Sort By: Option to arrange columns on the "
Coil Finder - Results" tab

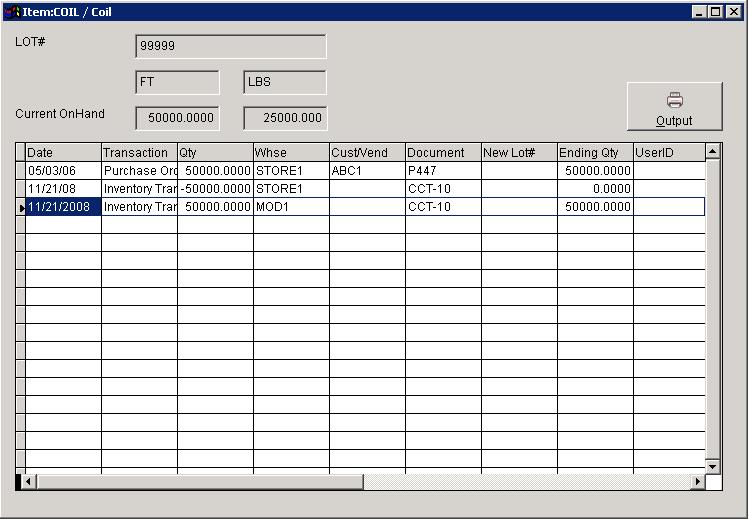

History: After selecting a "coil#" from the "
Coil Finder - Results" tab, click on the "History" button. A window, "
Item:COIL/ Coil", pops up to display detail information about the selected "coil#".

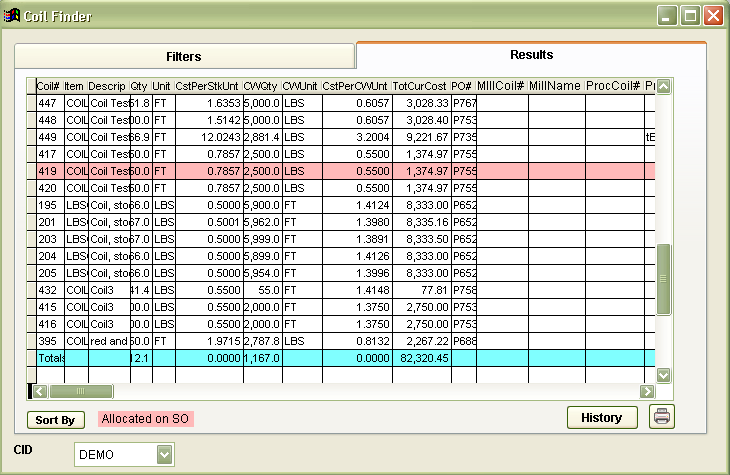

 Coil Finder- Results Screen |
