General Description
Default Menu Location: Maintain >> Routing > Route Maintenance
Screen Name: ROUTEMAINT

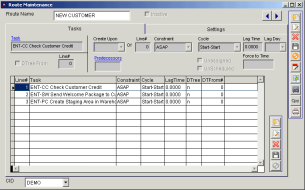

Function The Route Maintenance screen is used to add and maintain routes of standard tasks.
The grid on the left shows the current status of the route.
 Route Maintenance - Tasks Tab |
Fields
Route Name: The name of the route.
Task: The standard task you are entering or editing in the route.
Predecessors: The predecessor(s) for the standard task you have selected.
Create Upon x of Line #:
Select the event and task to create this task on.
CR-Create: Will start the task being entered at the creation of the Line# entered
AS-
Assign: Will start the task being entered when the Line# entered is Assigned to a
ResourceCO-Complete: Will start the task being entered upon the completion of the Line# entered
ST-
Start: Will start the task being entered once the Line# entered is
"Punch-in"/ or Started
Select the constraint.
ASAP will be scheduled soon as possible
ALAP will be scheduled as late as possible
Fixed will be scheduled at a fixed time and not moved.
Cycle: Select the cycle, to fire task from Line # Selected.
Start-Start: Schedules the start of the task being entered to fire at the same time as the Line# entered
Start-Finish: Schedules the start of the task being entered to fire once the Line# entered is completed
Lag Time: Select the lag time according to your cycle in days (d), weeks (w), months (m). For example, 1 day would be typed as 1d.
This field must not be left blank
The first step of the route MUST have a seq# of 1
